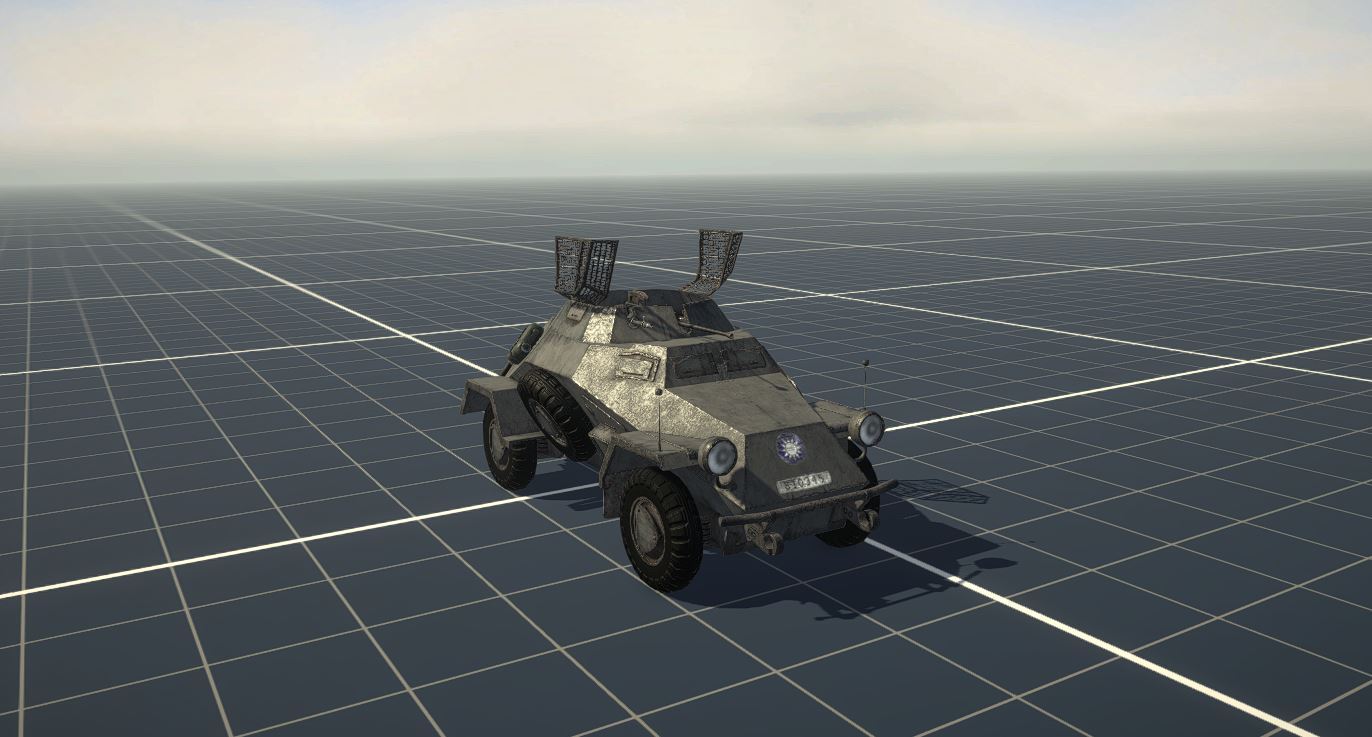

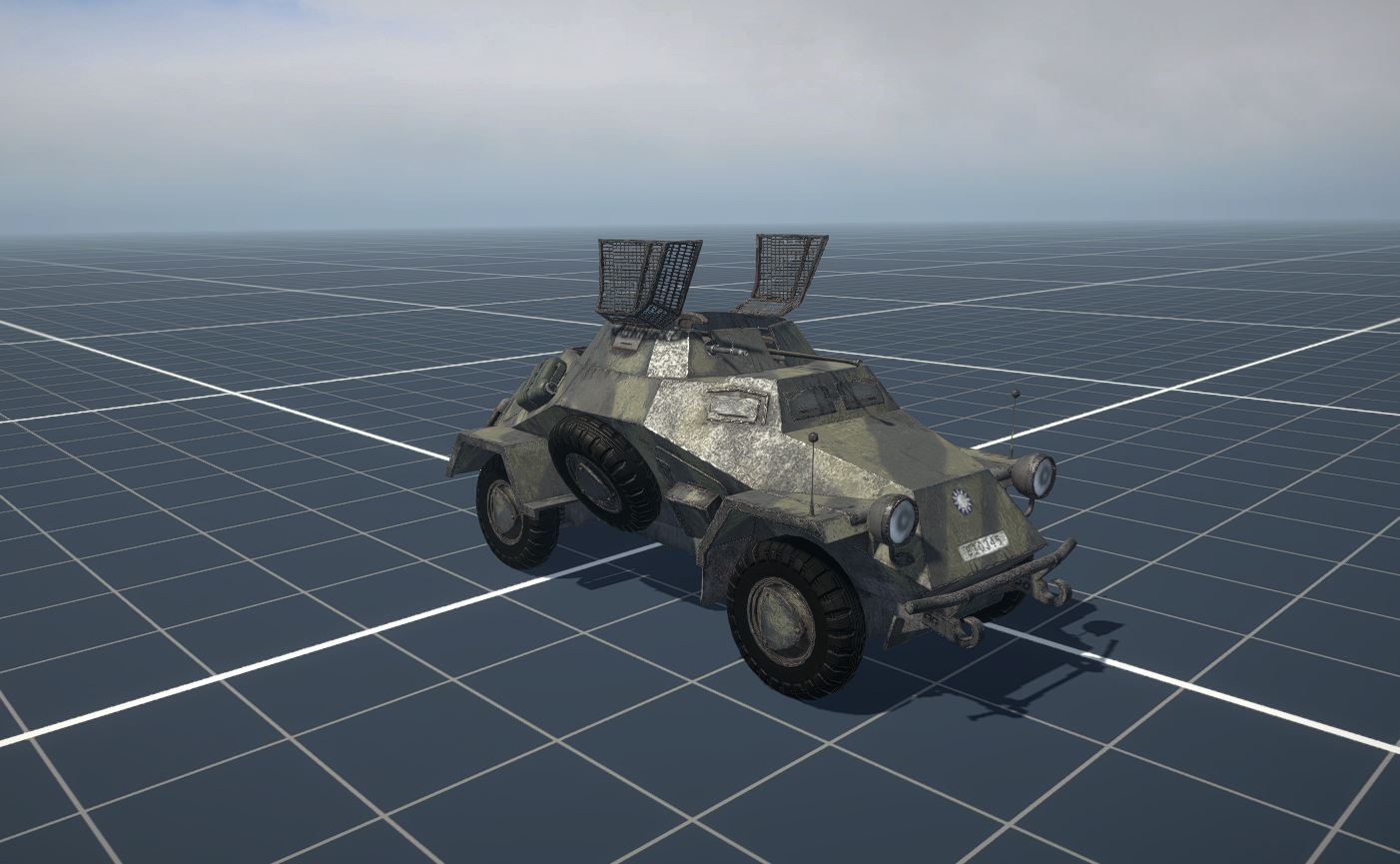

Sd.Kfz. 222 (CN) [Shanghai - Nanking DLC]

Before heavy armor could roll forward, the vanguard had to map roads, locate enemy positions, and probe for weaknesses. For the German Wehrmacht, the premier scout tasked with this hazardous duty was the Sd.Kfz. 222, a light four-wheel-drive armored car that became a signature sight of early-war German reconnaissance operations.

The origin of the Sd.Kfz. 222 (Sonderkraftfahrzeug 222) lay in the development of interwar Blitzkrieg doctrine. German military theorists recognized that traditional cavalry was obsolete, yet infantry scouts were too slow to keep pace with motorized columns.

They needed a vehicle built specifically for the Aufklärungs-Abteilung (Reconnaissance Battalions) to act as the eyes and ears of the advancing Panzer divisions.
The core design ideal centered on speed, agility, and reliability over heavy defensive power. The vehicle's precursor, the Sd.Kfz. 221, had proven the mechanical layout but was heavily criticized for being too small and undergunned, carrying only a single machine gun.

Between 1936 and 1937, engineers set out to design a heavier, more potent iteration capable of defending itself if caught in an ambush.
Developed by Eisenwerk Weserhütte, the Sd.Kfz. 222 was built upon a purpose-built military foundation: the chassis of the Horch 108 heavy off-road car. Unlike conventional trucks modified with heavy plates, this platform featured four-wheel drive and four-wheel steering, giving it exceptional maneuverability in tight spaces.

The defining upgrade of the 222 was its open-topped, ten-sided turret. It housed a 2 cm KwK 30 autocannon (later upgraded to the faster-firing KwK 38) mounted co-axially with a 7.92 mm MG 34 machine gun (replacing the early MG 13).

This gave the scout car enough firepower to shred enemy soft-skin transport vehicles, low-flying aircraft, and light fortifications. Because the turret was open-topped to provide maximum situational awareness, a folding wire-mesh screen was placed over the roof to prevent enemy hand grenades from being tossed into the fighting compartment.

Inside, the vehicle was remarkably cramped. Unlike traditional tanks where weapons are fixed to a rotating turret ring, the 222’s guns were mounted on a central pintle pedestal. The gunner rotated the turret simply by physically traversing the weapons themselves.

Because there was no turret basket, the three-man crew (driver, commander, and gunner) had to constantly step around the spent shell casings and weapon breeches blocking the floor.

Production of the Sd.Kfz. 222 spanned from 1937 to late 1943, during which time the factories of Auto Union (Horch), F. Schichau, and Maschinenfabrik Niedersachsen Hannover assembled at least 990 units.

While this number made it the most prolific variant within the Leichter Panzerspähwagen family, it was still produced on an artisanal scale. Each vehicle featured intricately welded, angled plates of rolled homogenous armor designed to deflect small-arms fire.

Initial models used 8 mm plates on the front and sides (with 5 mm protecting the top, rear, and bottom), which were gradually upgraded to 14.5 mm in 1939, and eventually to 30 mm of frontal armor on the later Ausf. B models. Germany also exported a small number of these vehicles, including 15 units to the Republic of China and a small batch to Bulgaria.

During the invasions of Poland and France in 1939 and 1940, the 222 performed beautifully. The dense, well-paved European road networks allowed the scout cars to exploit their high road speeds, cutting deep behind enemy lines, mapping bridges, and causing chaos in rear echelons.

However, the operational environment changed completely in 1941.

When deployed to the Soviet Union during Operation Barbarossa, the vast expanses and lack of infrastructure exposed the vehicle's primary vulnerability: its wheels.

During the autumn and spring mud seasons (Rasputitsa), the four wheels did not provide enough surface area to distribute the vehicle's four-ton weight. The cars frequently bogged down, forcing crews to rely on tracked or half-tracked alternatives. Furthermore, the 2 cm autocannon, while deadly against infantry, was entirely useless against the heavily armored Soviet T-34 tanks that began appearing in mass numbers.

In the deserts of North Africa, the vehicle faced similar issues, where its off-road traction was severely limited by deep, soft sand dunes. Recognizing these limitations, the Wehrmacht began phasing the 222 out of front-line reconnaissance by late 1943, replacing it with the Sd.Kfz. 250/9 half-track.

Ultimately, it was a vehicle optimized for a specific style of European conflict that ceased to exist after 1941. When the war transitioned into a brutal war of attrition across the difficult terrain of Russia, the wheeled scout car reached its mechanical limits. Nevertheless, its sleek, angled lines and distinctive silhouette endure as an influential design that spearheaded the armored columns of the mid-20th century.
